All About Extruders and Nozzles

Learn the basics of direct drive and Bowden extruders, hot and cold ends, nozzle sizes, and materials and to find the best 3D printer extruder for your needs.

For the majority of makers and hobbyists, 3D printing takes the form of desktop machines that use the process known as Fused Deposition Modeling (FDM) — or Fused Filament Fabrication (FFF) depending on who you ask.

In a nutshell, FDM involves a thread of plastic material being fed into a heated metal block with a nozzle, which then melts and is extruded in a predetermined layout. This traced path is repeated, stacking incrementally until a solid 3D object is formed.

All of the business end of handling the material, melting it and spitting it out happens in an assembly of different parts that (to some folks) are together known as the extruder. While not that complex mechanically, there are still plenty of parts that, in a specific sequence, allow your 3D printer to extrude plastic.

In this beginners guide we’ll address the main sections of the 3D printer extruder, the variations and advantages of different styles of extruder, popular models on the market, plus the 3D printer nozzle and the usual materials therein.

WHAT IS AN EXTRUDER

The 3D printer extruder is a series of parts that together handle the moving and processing of plastic filament.

Some people think of the extruder as only the motor and associated parts that push and pull the filament — others, the entire assembly including the heated part that melts and deposits the filament.

To keep things simple, this guide considers the entire assembly as the extruder. To begin with, in explaining the crucial components of the 3D printer extruder, we boil it down into two elements: the cold end and the hot end.



Cold End

Image of 3D Printer Extruder – The Ultimate Guide: Cold End

As the name suggests, the cold end is just that — cold. Cold end refers to the upper portion of the 3D printer extruder system whereby filament is fed and then passed along into the hot end for melting and extrusion onto the print bed.

How the general layout and position of the cold end on your 3D printer looks is down to whether it is a direct or Bowden drive 3D printer extruder (both of which are explained in detail below). The Lulzbot Taz 6 pictured at the top of this section uses a geared direct drive arrangement for its extruder, with the filament being pulled into the print head and directly pushed into the hot end. What we would consider the cold end is highlighted in the picture.

There is no heating of the filament here. The cold end consists of an extruder motor and gearing — typically mounted either to the printer’s frame or the print head itself depending on the style of extruder — and PTFE tubing to smoothly guide the filament into the hot end (again, dependent on the style of extruder, which we cover shortly). The tubing is essential on any Bowden 3D printer extruder to guide and, by being clamped on both ends, allow sufficient push on the filament to feed into the hot end.

What Happens in the Cold End?

Image of 3D Printer Extruder – The Ultimate Guide: What Happens in the Cold End?
With the heat sink removed on this e3D Titan Aero, we see the inner workings of the 3D printer extruder.

At its basest, the cold end consists of a stepper motor, some form of toothed gearing, a hobbed bolt or gear, spring-loaded idler (typically a bearing of some kind) to hold onto the filament and then PTFE tubing to guide the filament. With the exception of the PTFE tubing (which is not necessary on a direct drive 3D printer extruder), this cluster of parts is the same in both direct drive and Bowden 3D printer extruders.

3d printer extruder stepper motor

The humble stepper motor — seen here with a metal gear essential for the 3D printer extruder — these drive the motion and extrusion of filament in most if not all modern desktop 3D printers. Stepper motors are brushless DC motors that achieve a high level of precision in small movements and impart full torque at low speeds. Exactly what one wants when pushing exacting amounts of filament around a 3D printer extruder.

The stepper motor alone is not enough to feed filament to the hot end though. Parts attached to and working with the stepper motor’s driveshaft are required to physically grab the filament and push it along on its path to the hot end.

3D printer extruder cutaway view of gearing
In this cutaway view of the 3D printer extruder we see the metal pinion gear and plastic gear with hobbed shaft.

For this, there is usually a combination of gears and hobbed bolts or shafts (in the image above, we see a hobbed shaft attached to a plastic gear) serving as a pinch wheel along with a bearing or other stiff frictionless material. Often spring-loaded to maintain pressure on the filament, this also allows for the free movement of the filament (as dictated by the rotating of the hobbed bolt/gear). This arrangement typically sees the stepper motor directly pushing on the filament to feed it.

3D printer extruder parts
Here we see a plastic lever arm with embedded bearing, tension spring and plastic gear with hobbed shaft. Together these exert pressure on filament and feed it through the extruder.

Alternatively, there are versions of the 3D printer extruder cold end that utilize slightly different part arrangements in order to feed filament. Such variances often claim to offer increased grip and delivery of the filament.

One such example would be Bondtech and its popular 3D printer extruder. It uses two geared counter-rotating hobbed gears to grip the filament from two sides. The result is a dramatic increase in grip power when pushing the filament.

3d printer extruder guide direct drive Bondtech extruder
Here we see both sides of the Prusa i3 Mk3’s cold end – including its Bondtech extruder gearing. Two hobbed gears grip and push the filament, resulting in few (if any) skips or grinding of the filament.

As mentioned, there are variations of 3D printer extruder that utilize these parts in slightly different arrangements from one another. Each has its own pros and cons. Next, we’ll dive into what the differences are between direct drive and Bowden 3D printer extruders.

3d printer extruder difference between bowden and direct drive
A simple but effective diagram explaining the key difference between the direct drive and Bowden 3D printer extruder. (Image: forefrontfilament.co.uk)

Direct Drive Extruders

Image of 3D Printer Extruder – The Ultimate Guide: Direct Drive Extruders

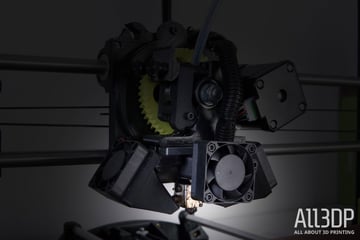

A direct drive extruder on the Prusa i3 Mk3. Stacked on top of the hot end, it pulls filament directly into the print head.

A direct drive 3D printer extruder is distinctive for its placement of the extruder motor directly on top of the hot end. Such an arrangement minimizes the travel distance of the filament to the hot end and can allow for more reliable 3D printing of flexible filaments.

Note though that because a 3D printer has a direct drive extruder does not necessarily mean it can print flexible filaments — soft wiggly filament can and will find its way out of an unconstrained paths. For success printing flexible materials, pay more attention to the position of the pinch and the path immediately around in inside your cold end.

A benefit to the use of direct drive is the finer control of retraction. Because of its position directly over the hot end, there is less travel between the pinch action and the filament passing through the heatbreak into the hot end. Consequently, there is less room for the filament to bend and buckle under the pressure exerted on it.

You will find a direct drive 3D printer extruder contributes to a bulkier, taller print head. Since it is adding a motor and other parts on top of the hot end, it logically stands to reason that this system is also adding mass to the print head, necessitating the build of the printer around it to accommodates moving this extra mass accurately.

A poorly assembled printer with a direct drive extruder is more likely to exhibit poor print quality (likely ripples on the surface of the print) from the print head’s continual overshooting and lurch when changing direction.

Bowden Extruders

Image of 3D Printer Extruder – The Ultimate Guide: Bowden Extruders
A Bowden extruder arrangement on a delta style 3D printer. The extruder motor is mounted to the frame, pushing filament through a tube to the hot end below.

Describing the difference between the Bowden and direct drive 3D printer extruder is easier if we turn to a clumsy metaphor. Everyone loves a clumsy metaphor, don’t they?

Imagine the difference between standing a few feet away from a hole in the wall and trying to poke a pool noodle through it, then standing inches next to the wall to do the same. One gives ample room for the noodle to wobble, bend and buckle. The other does not.

Rather than being mounted directly on top of the hot end, as with a direct drive 3D printer extruder, the Bowden style of 3D printer extruder sees the assembly of motor and gearing mounted to the printer’s frame. In doing so, the Bowden extruder gains an advantage over its print head mounted direct drive sibling: speed.

Mechanically a Bowden 3D printer extruder is no different to a direct drive 3D printer extruder. You still have a stepper motor driving a hobbed gear/bolt, which bites into the filament passing through it. Since the filament now has some distance to cover before entering the hot end for melting, the use of PTFE tubing is necessary to guide it. This tubing, typically with an internal diameter slightly larger than that of the filament, constrains the material’s path and allows the cold end to exert pressure as it feeds.

3d printer extruder guide direct drive
The Prusa i3 Mk3, which utilizes a direct drive arrangement of its extruder. It could be argued that the extra mass of the 3D printer extruder directly on the moving print head can cause problems, but a well-engineered and assembled machine (like this Prusa) negates this.

By placing the mass of the 3D printer extruder on the frame instead, a the print head is freed up to print at higher speeds without sacrificing print quality. Less mass moving at speed on the print head means

A side effect of positioning the 3D printer extruder in such a way is that now the filament has a long way to travel within a tube that is a fraction wider than it is. Across the length of the tube, there can be enough room for the filament to bend slightly. When retracting the filament between travel moves, this slack in the filament eats into the retraction distance. Without correction (i.e. increasing retraction), this introduces a delay in the easing of pressure effected on the hot end. In short, you could get messy stringing if you don’t take care to alter your retraction settings.

Another issue to address with Bowden 3D printer extruder setups is friction. With the filament needing to be pushed long distances inside a tube, it’s important that sufficient bite from the extruder with enough torque behind it is exerted on the filament for it to reach the hot end. Because of this, it’s not uncommon to see geared extruder motors in Bowden style 3D printer extruders for the higher torque they offer.

Most delta style desktop 3D printers utilize Bowden extruders.

Direct Drive vs Bowden Extruders

Image of 3D Printer Extruder – The Ultimate Guide: Direct Drive vs Bowden Extruders
The distance between the pinch point on the filament and the guiding tube is small - too small for flexible filaments to buckle and cause print failure.

A common argument that crops up when discussing a given 3D printer extruder is its ability to handle flexible filaments. Which is better? Bowden, or direct drive?

Such arguments likely arose from the development and availability of flexible filaments for 3D printing, and their attempted use in 3D printers designed before such materials was a consideration. Because of this, a stigma around Bowden extruders and their supposed inability to print flexible filaments grew. But on today’s machines, that’s mostly not true.

Any extruder is capable of pushing or pulling wiggly flexible filaments. The problems arise when that filament is unconstrained at any point beyond the pinch point of the extruder. This is a design quirk present even on some direct-drive extruders.

Materials such as TPU are soft and wiggle like cooked spaghetti, so require better guidance through the 3D printer extruder to avoid buckling on itself and wrapping around moving components. If you’re looking to print flexible filaments, there needs to be as little open space from where the filament is gripped by the hobbed gear and bearing, and its entrance into the heatbreak.

That should be about it with regards to the 3D printer extruder and printing flexible filaments. But that alone isn’t enough for success — there are print settings you must consider that will ensure it, such as speed and retraction.

Hot End

Image of 3D Printer Extruder – The Ultimate Guide: Hot End

Where the cold end directly manipulates the filament, pushing and pulling as required by the 3D printer, the hot end is where… well, the hot stuff happens.

Inside the assembly known as the hot end the filament passes into a heated chamber, where it transitions from solid to liquid. Sounds simple, and it mostly is. Though there is a lot going on to allow the filament to silkily extrude onto your build plate.

ADVERTISEMENT
ADVERTISEMENT
3D PRINTER EXTRUDER – THE ULTIMATE GUIDE

What Happens in the Hot End?

Image of 3D Printer Extruder – The Ultimate Guide: What Happens in the Hot End?
The e3D Titan Aero combines both hot end and extruder in one compact unit. The hot end would typically feature just the central parts of this image: heatsink (and fan), heat break, heater bock, hearter cartridge, thermistor and nozzle.

From the top to bottom, your typical 3D printer hot end comprises of a specific sequence of parts. There is a slight difference depending on if you are using a PTFE/PEEK or all-metal hot end. Here we explain the all-metal hot end — a breakdown of the differences between PEEK/PTFE and all-metal hot ends can be found in the section below this.

Firstly there is the filament feed tube (not pictured above). In both the Bowden and direct drive 3D printer extruder this will simply be the PTFE tube running from your cold end. Though note that not all direct drive 3D printer extruders feature this.

Sometimes you’ll see direct drive 3D printer extruders with the filament running directly into the print head.

On a Bowden 3D printer extruder, this feed tube inserts the filament directly into the heat break through the heat sink. The heatbreak, which is threaded into the heat sink, is often simply a threaded stainless steel (or other non-heat conducting metal, such as titanium) tube.

Divided into two parts (notice the two separate threads on the image below — longer for the heat sink,  shorter for the heater block) and featuring a treated interior surface, the heat break allows the filament to pass freely into the nozzle for extrusion.

3d printer extruder guide heater block, heatbreak and nozzle
Clockwise from bottom left: steel heatbreak, aluminum heater block, and brass nozzle.

But, since we’re dealing with accuracy and material that turns into a liquid to be rapidly re-cooled, the management of temperature is crucial. The heatbreak, in combination with the heat sink, maintains a specific boundary at which the filament is hit with high temperatures.

The upper portion, which is actively cooled by the heat sink and a dedicated fan (or water cooling system, in some extravagant cases), prevents heat escaping the hot end and weakening the filament before it is where it needs to be for extrusion. This undesirable phenomenon is known as heat creep.

The lower portion of the heat break sits within a heater block, along with a heater cartridge, temperature relaying thermistor, and nozzle.

Usually constructed from aluminum, the heater block ensures a seamless transition for the filament from the open end of the heat break tube, into the nozzle.

The temperature to melt the filament has to come from somewhere though, which is where the heater cartridge comes into play. Under an electric current, the heater cartridge gets hot, transferring heat to the nozzle via the heater block they are both encased in.

3d printer extruder guide heater block and its elements
Clockwise from top left: heating block, thermistor, heater cartridge, nozzle, heatbreak.

Power resistors are an alternate means to heat the hot end, but are less common these days.

Also housed within the heater block is a thermistor — a small probe that relays the temperature of the block to the 3D printer’s mainboard, allowing for the correct adjustments to be made. In layman’s terms (we’re not electrical engineers here — it’d be disingenuous to attempt to explain in detail), it does this by nature of its resistance changing in correspondence with its temperature, and thus the printer’s board can get a read on the temperature based on the resistance at that current point in time.

And then, at the raggedy edge of the whole system, there is the nozzle. A small nubbin of machined metal, the nozzle itself consists of a chamber — where the molten filament resides — that tapers to the nozzle’s opening.

This opening is a precise diameter, which is the measure by which you purchase it. Most desktop 3D printers ship with 0.4mm nozzles as standard, but there are many other sizes available.

3D printer nozzle guide
Nozzles! The larger opening on the right is where molten filament gathers inside the heater block, before being ejected through the nozzle opening.

Brass is the preferred material for factory-shipped default nozzles but, while fine for softer materials like PLA and ABS, filaments with tough additives such as carbon fiber will quickly wear away and deform a brass nozzle’s opening. For specialist filaments, 3D printer nozzle materials like stainless steel and ruby are preferred.

The 3D printer nozzle is a veritable world of options, so we’ll detail the popular choices and differences between them below in their own dedicated section.

ADVERTISEMENT
ADVERTISEMENT
ADVERTISEMENT
ADVERTISEMENT
3D PRINTER EXTRUDER – THE ULTIMATE GUIDE

Hot End Variations

Before jumping on to the nozzle though, there’s an important distinction and glossary check to keep in mind. Commonly you will see reference to “all metal” hot ends. Traditionally hot ends used PEEK (Polyether ether ketone) as an insulator for the PFTE (Polytetrafluoroethylene) tubing inside the heat break, guiding the filament into the heater block for melting.

In the days of simply printing PLA or ABS — which typically require low temperatures to print — PEEK was sufficient. However, attempting to print tougher and more demanding filaments requires higher temperatures that risk breaking both PEEK and PTFE down, releasing noxious fumes, ruining prints and generally messing up your hot end.

All metal hot ends were introduced to allow for the printing of materials that require higher temperatures. In place of a PEEK insulator, we now typically see a stainless steel heatbreak (as described above) separating the PTFE tubing coming from the cold end, and our heating block.

ADVERTISEMENT

THE 3D PRINTER NOZZLE

Exerting influence over the final output of your prints, the 3D printer nozzle is an integral component of the hot end. It is perhaps the most visible part of the system since most folks will — at some point or another — intently watch the first layers of a print extrude from their printer’s nozzle. We’ve all been there.

One of the great flexibilities in desktop 3D printing is the ability to swap out nozzles to suit your printing purpose. There is a dearth of nozzle sizes and materials that grant repeatability when printing with exotic materials or increase the detail and speeds at which you can print.

What Happens in the Nozzle?
Image of 3D Printer Extruder – The Ultimate Guide: What Happens in the Nozzle?

In a nutshell, there’s little to understanding the 3D printer nozzle. Screwed into the hot end heater block, a small chamber lies within. Filament travels from the cold end into the hot end and through the heat break where it meets the nozzle.

This transition into the heater block is where the filament liquefies. From here it is channeled through the 3D printer nozzle to a taper ending in the nozzle opening.

There are two main considerations when it comes to 3D printer nozzles: the diameter of the opening and the material of the nozzle.

Nozzle Materials

On your average out-of-the-box desktop 3D printer you’ll find a 0.4mm nozzle. And chances are it is made from brass. This is fine and dandy for printing run of the mill materials such as PLA and ABS, but when you start to look further afield at exciting materials like glow-in-the-dark PLA, or metal-enriched filaments, the softness of brass becomes an issue.

With the continual extrusion of filaments that contain hard particles, the 3D printer nozzle gradually erodes. Over time this distorts the opening and inner dimensions of the nozzle, reducing the consistency of what is extruding from the nozzle at a given time and impacting on print quality. It is for this reason that 3D printer nozzles made from harder materials are preferred for such usage.

Here’s a rundown on some the 3D printer nozzle materials kicking about the market these days:

BRASS 3D PRINTER NOZZLE

3D printer extruder 3D printer nozzle guide
Cheap and easy to produce, brass nozzles are the bog-standard – but effective – desktop 3D printer nozzle.

The “standard” 3D printer nozzle material, and most likely the nozzle type that came on any desktop 3D printer you bought recently. Of the 3D printer nozzle materials, it is the softest around. Easily machined, brass nozzles are cheap and widely available, making it the ideal stock nozzle. Its excellent thermal conductivity also makes it the material of choice for exotic nozzles that use a different harder material for its tip.

Characteristics:

  • High thermal conductivity
  • Resistant to corrosion
  • Relatively soft
  • Low abrasion resistance

Best uses: “Soft” plastic filaments such as PLA and ABS and PETG. Filaments that do not include particle additives (metal and carbon fiber, for example.)

STAINLESS/HARDENED STEEL 3D PRINTER NOZZLE

3d pritner nozzle guide
A steel Mk6 nozzle, in all its shiny grey glory.

Harder than brass, multiple forms of steel can be found in use as 3D printer nozzles today. Typically stainless steel or hardened steel, these materials allow for the long term printing of filaments enriched with hard particles like carbon fiber and metal without the risk of the 3D printer nozzle eroding and print performance suffering.

One downside to steel as a 3D printer nozzle is its poor thermal conductivity compared to brass. This can mean inconsistent flow performance, especially so at larger nozzle sizes.

Characteristics:

  • Low thermal conductivity
  • Resistant to corrosion
  • Relatively hard
  • High abrasion resistance

Best uses: Filaments laced with hard additives such as metal, carbon fiber, and glass.

RUBY 3D PRINTER NOZZLE

3d printer nozzle guide Olsson Ruby
Anders Olsson’s Olsson Ruby nozzle – a brass nozzle with aluminium oxide (ruby) tip.

There is a glut of other materials used for 3D printer nozzles, some more exotic than others.

The Olsson Ruby is one such nozzle. Developed by Anders Olsson, a research engineer at Uppsala University in Sweden, it is the result of a requirement for a specific experiment 3D printing a filament blend containing Boron Carbide. After as little as 1kg of the filament, standard brass and steel nozzles wore down to unusable distortions of their former selves.

And so Olsson created the Olsson Ruby. A brass nozzle with a ruby tip, it retains the thermal conductivity of brass and pairs it to the superior abrasion resistance of ruby (specifically aluminum oxide).

It could be argued that the ruby element itself in the Olsson Ruby nozzle has a low thermal conductivity, making less reliable in some instances, but there is little chatter online to back this up.

Characteristics

  • High thermal conductivity
  • Resistant to corrosion
  • High abrasion resistance

Best uses: As with steel, highly abrasive filaments are the prime use case for a nozzle like the Ruby. The one difference here is that it was specifically designed to print the third hardest material in the world, without giving up the ghost after a few hundred grams of material.

OLSSON RUBY NOZZLES
COMMISSIONS EARNEDCheck price at

TUNGSTEN CARBIDE 3D PRINTER NOZZLE

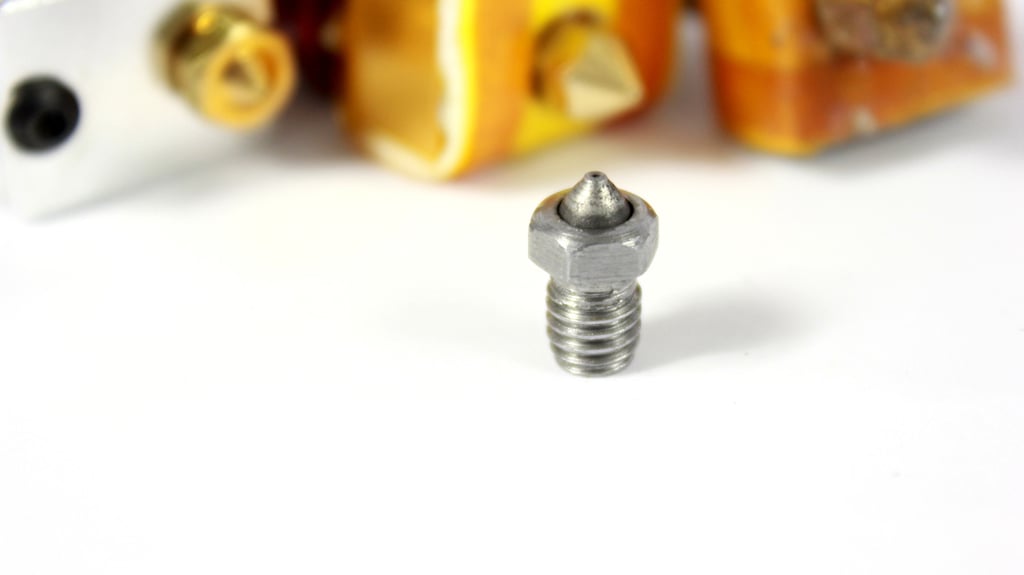

Dyze Design Tungsten Carbide nozzle
Dyze Design Tungsten Carbide nozzle

A relative newcomer to the 3D printer nozzle market is the Tungsten Carbide nozzle. Produces by Canadian manufacturer DyzeDesign, it is inspired in part by the heavy mining industries and their use of the ceramic for cutting metals and drilling rocks. Tungsten Carbide strikes a balance of hardness, abrasion resistance, and thermal conductivity.

Real-world testing of the nozzle is few and far between, however, since it currently stands as a Kickstarter campaign with the delivery of the nozzles pegged at late 2018.

Characteristics:

  • High thermal conductivity
  • High abrasion resistance
  • Hard
  • Resistant to corrosion

Best uses: Billed as the best “all-rounder”, a Tungsten Carbide 3D printer nozzle would more than comfortably deal with the abrasive filaments that demand a tough nozzle.

Nozzle Sizes

Image of 3D Printer Extruder – The Ultimate Guide: Nozzle Sizes

The nozzle diameter impacts upon how fine a level of detail you can aim for in your prints, affecting not only on how wide your line widths are, but the recommended layer heights, too.

For starters when printing with a 0.15mm 3D printer nozzle versus a standard 0.4mm nozzle there is the obvious advantage of being able to theoretically achieve higher X- and Y- axis resolution. Finer lines can mean sharper corners, however we will say this gain is likely only achievable on a well maintained and tuned 3D printer.

That’s not to say you shouldn’t consider a smaller nozzle for your prints if you don’t feel your machine is as precisely tuned as we mention above, as there is another advantage in the reliability in printing finer layer heights.

As a loose rule of thumb the 3D printer nozzle diameter should dictate the layer heights you aim for. Aim to be printing layer heights approximately 25-50% of the nozzle’s diameter.

This (along with a properly calibrated bed) ensures better adhesion between the lines you lay down. For example with a stock 0.4mm 3D printer nozzle, you should aim to be printing with a 0.1 – 0.2mm layer height.

So, to have a better chance of successfully printing superfine layer heights below 0.05mm, you might be better served opting for a 0.2mm 3D printer nozzle. Like any thumb though (and its rules thereof), it bends. Your mileage may vary and experimentation with your print settings will no doubt accommodate successful prints outside of this rule.

3d printer nozzle guide

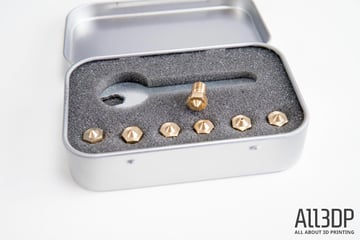

A “fun pack” of nozzles, ranging from 0.25mm to 0.8mm

One downside to using smaller nozzles is the likelihood of clogs. A smaller 3D printer nozzle opening, by nature of having a smaller path, more likely to get clogged by particles that would otherwise flow through a larger nozzle. Be prepared for the possibility of regular cleaning and unclogging.

Adding to the possible drawbacks of using a smaller 3D printer nozzle is the dramatic increase in print time, with more passes of the print head required to cover the same distance a larger nozzle would achieve in fewer moves.

On the other side of the coin for 3D printer nozzle sizes is increasing nozzle size. Doing so can have a pronounced impact on your print for the better. Wider extrusions can cut print time exponentially — a single 0.8mm wall takes half the time of a 0.4mm wall that is two lines thick, for example.

In addition, larger line extrusions bond better, resulting in stronger prints. These advantages make large 3D printer nozzles a boon for fast prototyping where fine surface detail is a low priority.

Of course, the downside of printing larger extrusion lines comes at the expense of definition in your print. It logically stands the fatter lines of extruded plastic will render fine surface detail poorer than smaller nozzles.

You could argue that the benefits of using small nozzle sizes are limited to hobbies and professions that demand fine detail, most likely model making and jewelry design. For the average Joe, there’s probably little reason to go finer than 0.4mm (there’s a reason it’s the standard stock 3D printer nozzle size.)
