As an important part of any 3D printer, it's critical that the nozzle remains clean. Read on to learn more about 3D printer nozzle cleaning!
Where It All Goes Down
On FDM 3D printers, many parts contribute to creating a model, but the nozzle is perhaps one of the most important. It’s where melted material exits the hot end. If you’re unfamiliar with this component, it usually has a thread to connect to the hot end and, on the other end, a smaller hole where the filament is pushed through.
The nozzle is so important because it affects a printer’s extrusion, and if not working properly, it can lead to a host of printing problems. Moreover, not all nozzles are the same. Material, diameter, and other characteristics determine its performance and lifespan.
Nothing lasts forever, nozzles included. They degrade over time, especially when they get dirty, clogged, or overused. That’s why it’s critical to regularly clean your printer’s nozzle and ensure that it’s working well with the other hot end components on the printhead assembly. Doing so will help extend the lifespan of your nozzle.
In this article, we’ll go over how to clean your nozzle and prevent issues from arising as well as to fix any problems that could take your printer out of commission. Let’s dive in.
Identifying the Problem
Before we get into the solutions for cleaning your nozzle, it’s important to ensure that the nozzle is actually the problem. Below, we’ve listed a few problems that may be caused by a dirty nozzle. For each one, we’ve also included other factors to check before determining the problem is in the nozzle:
- No first layer: If you started a print and see no filament being extruded from the nozzle for the first layer, it could be due to a clogged nozzle. However, it would be worthwhile to check that this problem isn’t caused by the extruder, the Z offset setting, or an unlevel bed.
- Nozzle picks up printed material: This problem is when your nozzle lays some material down, then accidentally picks it up when it moves across the layer. Usually, the nozzle is the only cause of this problem, but make sure you also have a proper Z offset and a level bed.
- Hot end jam: Hot end jams often look as if filament got stuck or trapped in the middle and lower areas of the hot end. As the nozzle is a component of the hot end, it could be responsible for a jam, but be sure also to check that the hot end path (e.g. PTFE liner) isn’t the cause.
- Inconsistent extrusion: Inconsistent extrusion usually looks like your printer can’t keep up with the extrusion of material. It extrudes material in sudden bursts when it should be extruding an even amount of material consistently. Make sure, however, that this problem isn’t caused by wet filament or the extruder’s stepper motor (specifically, its power).
- Under-extrusion: Under-extrusion is similar to the previous one but is a more moderate version that yields a print with obvious missing portions. Make sure to also check that the problem isn’t caused by wet filament, loose extruder tension, or a non-smooth filament path.
- Missing print: If you start a print and come back to “completed” print with only a few, if any, printed layers, it could be caused by a clogged nozzle. However, make sure to also check that your filament diameter is accurate, the print temperature is within the filament material’s range, and the extruder is rotating (It’s ok if no filament comes out, but make sure the extruder motor works).
As we’ve said, it’s imperative to first diagnose the source of the problem as the nozzle. While cleaning your nozzle is usually not a bad idea, it may not resolve the issues that you’re experiencing. A good idea to effectively fix a printing issue is to consider each potential cause of the problem. Then, going from the easiest to check to the hardest, examine each possible cause to find the real culprit.
Once you’re confident that the printing problem you’re experiencing is due to a dirty nozzle, move on to the cleaning methods.

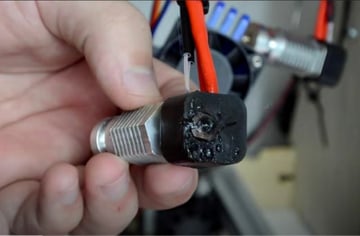

Debris on the nozzle’s exterior is the most visible of all nozzle problems. The debris is usually excess melted material that got stuck to the nozzle during printing.

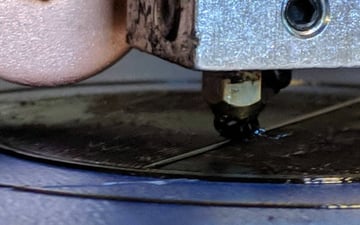

While this problem is almost always caused by the nozzle being too low – often while printing the first layer, the problem is exacerbated because materials stick best to the same material. Basically, as filament flows out of the nozzle, some get stuck to the side of the nozzle, and as the filament continues to flow out, more catches on the initial material that stuck to the nozzle’s exterior.
First, clean the nozzle using a damp cloth or an alcohol wipe while the nozzle is hot. This may cause some steam but will indeed remove any material clinging to the nozzle. If this doesn’t work, you can also use a wire brush, small blade, or needle to remove any remaining debris from the nozzle.
While this cleans the nozzle’s exterior, it’s best to prevent any material from getting on the nozzle in the first place. So, consider raising the Z offset and leveling the print bed. It also helps to use a silicone sock that covers most of the nozzle and prevents too much material from sticking.
Clogs are perhaps the most common nozzle problem. They occur when debris inside the hot end blocks the output hole of the nozzle, preventing filament from exiting (which results in under-extrusion or worse missing prints).
There are two types of nozzle clogs: partial clogs and full clogs. As you might have guessed, full clogs are the worse type of clog. Debris blocks the entire output hole, thus trapping filament in the extruder. Partial clogs occur when debris only blocks some of the exit hole. While less bad than full clogs, you should clean your nozzle if you have either.
There are a few methods for removing nozzle clogs, and we’ll go over three of them. The first and easiest is to stick a small needle in the nozzle to break up and push the debris out of the way.
The second method is performing a cold pull, which removes the debris entirely from the hot end. Check out our article on cold pulls for all of the steps.
The third method is to completely replace your clogged nozzle. This method is painless economically speaking if you’re using generic brass nozzles, as they’re so cheap. For this method, start by heating the hot end to melt any solidified material stuck in the nozzle. Also, make sure to remove any filament that’s fed into the extruder.
Once the clogged filament has softened thanks to the heat, unscrew the nozzle from the hot end. Before attaching the new nozzle, make sure to clean the hot end with a small metal rod or pick to remove any excess filament stuck in the assembly.
PTFE Tube Hot End Gap

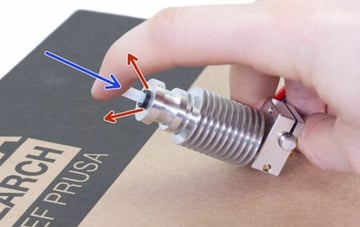

A gap between the PTFE tube and the top part of the nozzle can also cause problems. Gaps can occur due to an uneven PTFE tube end, when the tube is not pushed far enough down into the hot end, or when the nozzle is not screwed far enough into the hot end to be flush with the tube.
If a gap exists, melted filament will fill this gap. When the material cools, it will completely clog the hot end. This can occur in both PTFE-lined and all-metal hot ends.
First, remove the PTFE tube from the hot end (if possible), then screw the nozzle in almost all the way (about 95% in). After checking that the end of the PTFE is flat and the PTFE coupler (which holds the tube) is screwed tightly into the hot end, insert the tube down the hot end.
Finally, screw the nozzle the last bit into the hot end to achieve a tight seal between it and the PTFE tube.
Replacements & Upgrades
If none of these solutions are working or you simply suspect your nozzle has degraded significantly and no amount of cleaning will help, it may be time to get a new one.
As we mentioned earlier, nozzles vary in material, diameter, and other factors. These characteristics affect what the nozzle can handle printing-wise and how prints will turn out. For example, abrasive materials, such as glow-in-the-dark or wood-filled materials, significantly accelerate the degradation of lower-quality nozzles.
In the next couple of sections, we’ll talk about two important things you should consider when replacing or upgrading your 3D printer’s nozzle: diameter and material. For a deeper dive into the world of nozzles, check out Best 3D Printer Nozzle (For Your Needs).
A 0.2-mm diameter exit hole is on the smaller side of diameters and will allow you to print items with more detail. It’s a great size for printing items like miniatures. It’s important, however, to note that prints will take longer and usually be weaker because they have more print lines.
The 0.4-mm diameter is the industry standard across consumer 3D printers. This size offers a great mix of detail, strength, and print time.
This diameter nozzle is on the higher side of nozzle sizes and allows you to print much faster. Prints should also be stronger because they will have fewer print lines, but this comes at the expense of print detail.

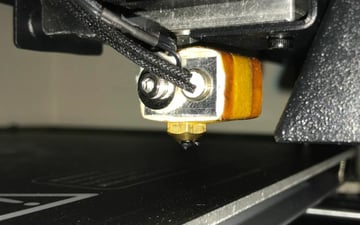

Brass is the most popular material for nozzles and is the cheapest too. They’re so cheap that you can purchase 25 generic ones for under $10.
As you might expect, this nozzle material typically has the shortest lifespan, as it degrades the fastest. Brass nozzles are most appropriate for printing non-abrasive materials like PLA, ABS, and PETG. However, this nozzle material will degrade significantly faster when used with abrasive materials.
Steel nozzles (including hardened and stainless steel) are one step above brass nozzles. Nozzles in this material cost more than brass nozzles but have a longer lifetime and a higher maximum temperature. On top of non-abrasive materials, steel nozzles can also handle light use of abrasive materials before significantly degrading.
- Approximate price per nozzle: $0.70-$20
- Popular brands: E3D, Creality, Micro Swiss, Afunta
Ruby nozzles are the crème de la crème of nozzles and are made of a conductive material for the base (usually brass) with a ruby tip. As ruby is a gemstone that is extremely durable and resistant to abrasion, ruby-tipped nozzles can handle basically all materials and last for years. The downside, however, is how expensive ruby nozzles can get, costing around $100 per piece.
- Approximate price per nozzle: $90-$100
- Popular brands: Olsson Ruby
